Adds a configurable rigid L bracket for common NEMA 17 and NEMA 23 motor mounting patterns. It reuses the existing NEMA hole spans and pilot dimensions, with separate motor and base clearance holes and an explicit mounting-face/shaft-axis datum.
Example:
nemamotormount_nema17_w50mm_h60mm_depth40mm_t3mm_axisheight30mm_shaft23mm_motorhole3.5mm_basehole5.5mm_basexspan30mm_baseoffset20mm.The schema, strict parser, public exports and typed registration live in
src/models/nemamotormount/. Adding this family changes no shared registry, export list or generated source. Documentation covers dimensions, unit conversion and invalid or conflicting inputs.Schema, strict parser, public schema/type exports and typed registration remain in each
src/models/<name>/folder; generated discovery owns shared unions and barrels.NEMA motor mounting bracket
Paired renderer: tscircuit/jscad-electronics#435. Direct full-string fixture; verified browser preview.
The motor mounting face and shaft axis share the origin, +Y is up and +Z follows the shaft. The base extends toward -Z under the motor. Common fixing spans are 31/47.14 mm; 23/39.1 mm openings clear the representative 22/38.1 mm pilots. Bracket dimensions and base drillings are custom, not NEMA standards or a load rating. Circumscribed holes preserve minimum circular clearance; resolution guards account for their maximum radius.
Contract tests, typecheck, formatting, build and diff checks passed locally. Source-group result: 82 pass,0 fail,2043 assertions.

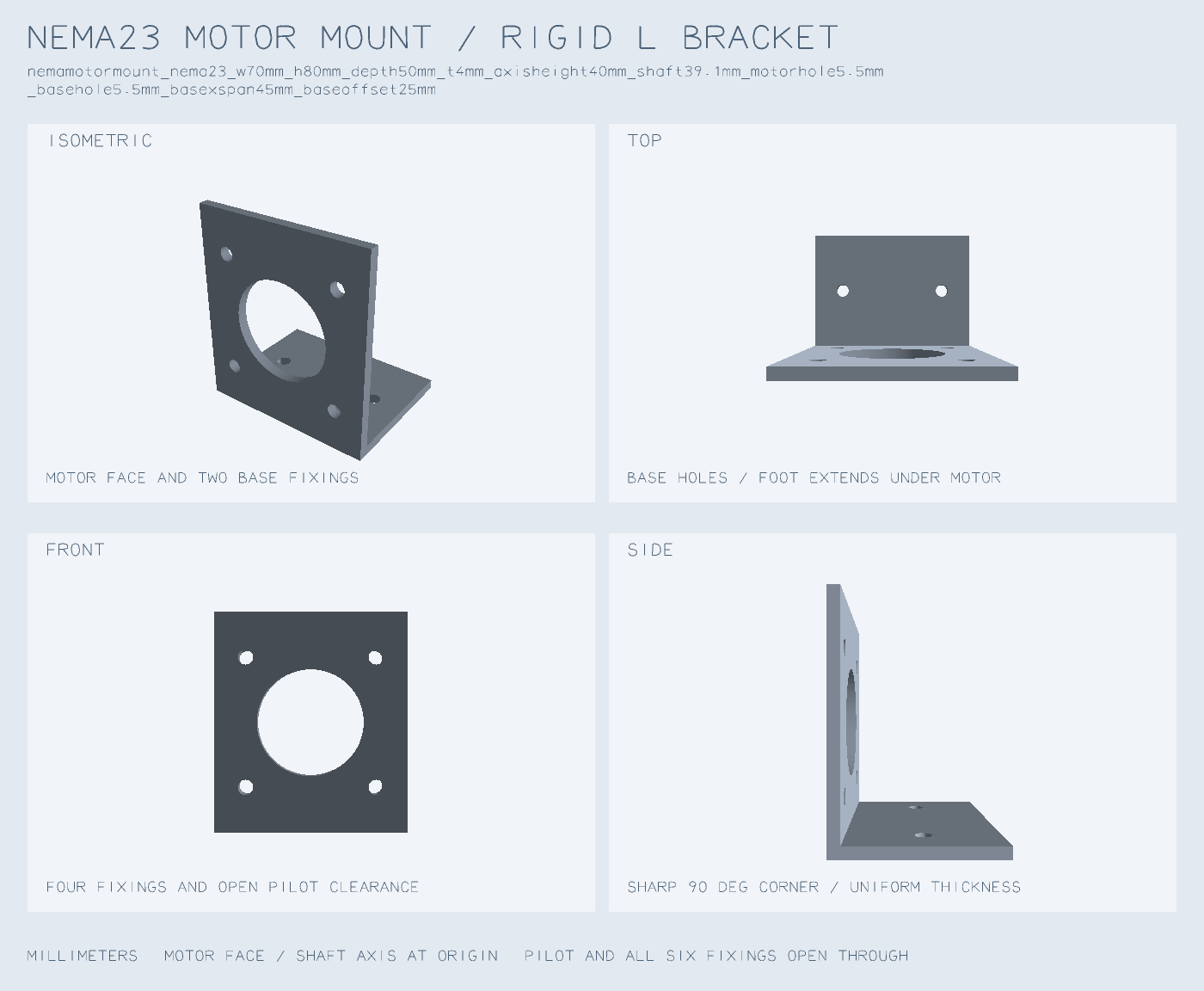

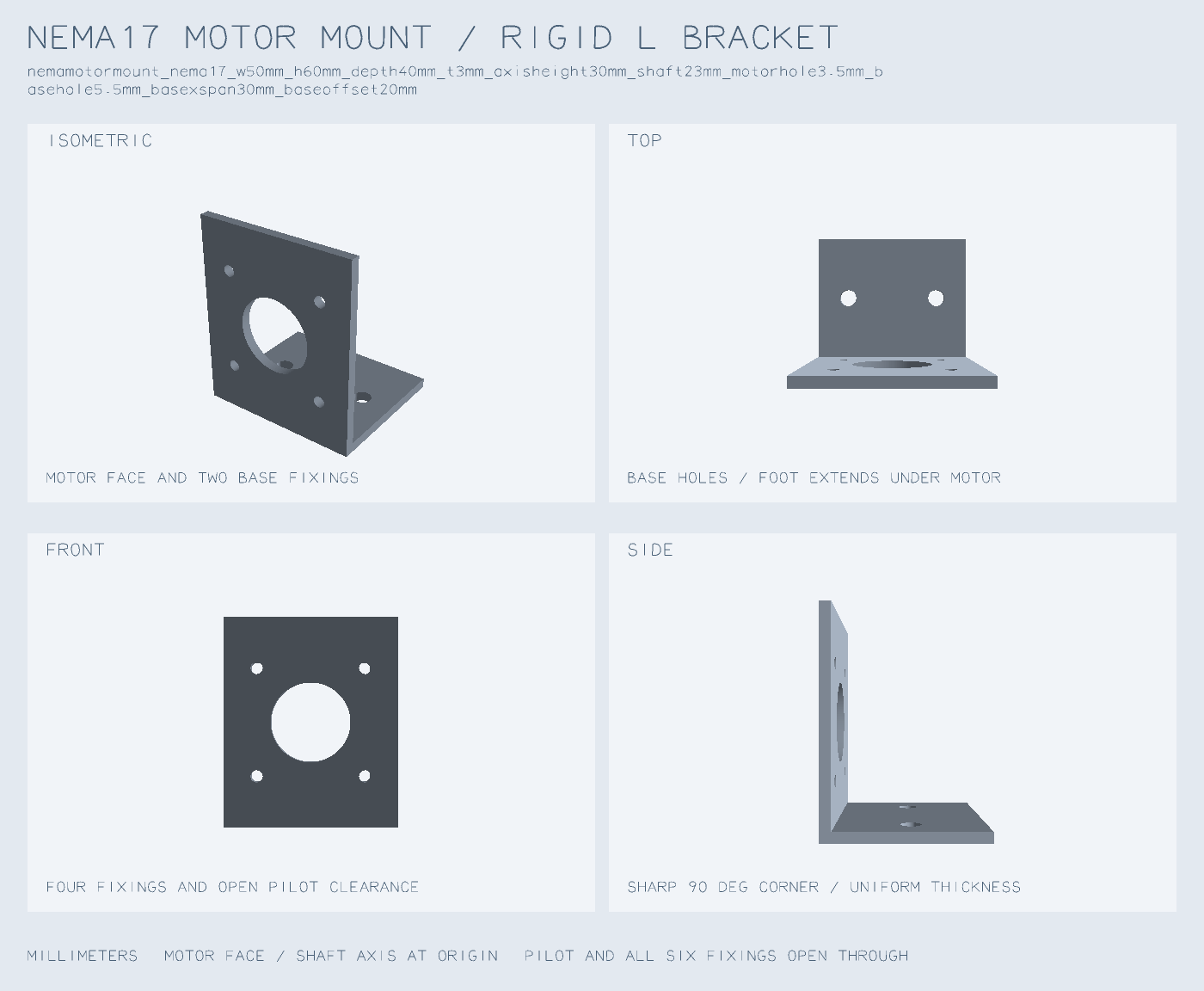

Four-view snapshots (isometric, top, front and side):
Contract test workflow passed in CI at this exact head. Other passing checks: preview.
The combined contract union passed tests (105 tests, 0 failures, 2,994 assertions), typecheck, formatting and build.
Manual review only; auto-merge is not enabled. Geometry remains in the paired renderer PRs.
